High-Torque 24V Brushless DC Motor (5840-3650) for Commercial Cleaning Robots
• Model Number: 5840-3650S
• Voltage: 12V or 24V
• No-Load Speed:
◦ 12V: 8 RPM, 14 RPM, 20 RPM, 40 RPM, 80 RPM, 130 RPM, 235 RPM
◦ 24V: 16 RPM, 27 RPM, 40 RPM, 80 RPM, 160 RPM, 260 RPM, 470 RPM
• Torque: Up to 70 kg·cm at stall
• Efficiency: IE 2
• Protection: Totally enclosed to prevent dust and moisture ingress
• Shaft Diameter: Dual shaft design for versatile mounting options

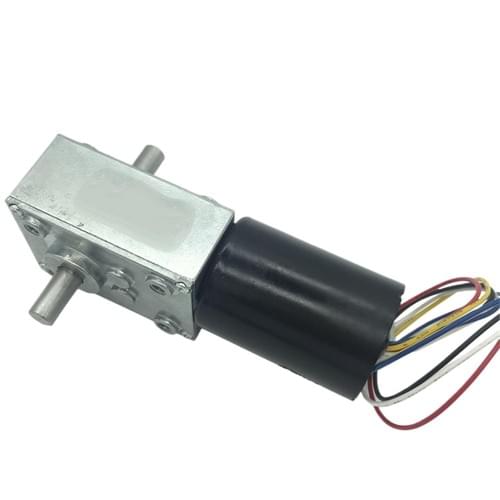

The 5840-3650S is a high-torque, brushless DC gear motor specifically designed for demanding applications such as commercial cleaning robots. This motor combines robust performance with precise control, making it an ideal choice for heavy-duty operations.
Key Features:
High Torque Output: Delivers significant rotational force, suitable for applications requiring strong power.
Brushless Design: Ensures high efficiency, reduced maintenance, and longer lifespan compared to brushed motors.
Wide Speed Range: Offers no-load speeds ranging from 8 RPM to 470 RPM, depending on the gear ratio and voltage (12V or 24V).
Dual Shaft Configuration: Features a double shaft design, providing flexibility for mechanical integration.
Robust Construction: Built with high-quality materials and components to withstand continuous operation in demanding environments.
Certifications Me:ets international standards such as CE, RoHS, and CCC, ensuring reliability and safety.
Customizable Options: Available in various configurations to meet specific application needs.
Applications:
Commercial Cleaning Robots: Ideal for robotic sweepers and scrubbers requiring high torque and precise speed control.
Automated Machinery: Suitable for industrial equipment that needs reliable power and durability.
Material Handling Equipment: Perfect for conveyor systems and other applications requiring consistent performance.
Advantages:
Efficient and Reliable: Brushless design reduces wear and tear, ensuring long-term reliability.
Flexible Speed Control: Wide range of no-load speeds allows for precise control in various operating conditions.
Robust and Durable: Built to withstand heavy-duty use in commercial environments.
Customizable: Can be tailored to meet specific voltage, speed, and torque requirements.
The 5840-3650S high-torque brushless DC motor is a powerful and versatile solution for commercial cleaning robots and other demanding applications. Its robust design, wide speed range, and high torque output make it an excellent choice for ensuring reliable performance in heavy-duty operations.
