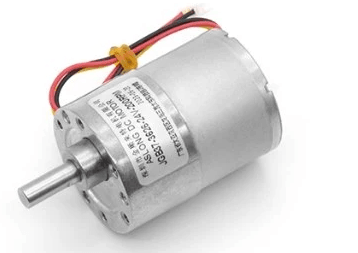

JGB37-3626 24V Brushless DC Gear Motor – High Efficiency, Low Noise, Long Life
Motor Type: Brushless DC Motor with Gearbox
Rated Voltage: 24V DC
High Efficiency: Brushless design reduces energy loss and heat generation
Low Noise & Low Electromagnetic Interference
Long Service Life: No brushes to wear out
High Torque Output: Suitable for heavy-load applications
Compact Design: Easy to integrate into space-constrained systems
Optional Encoder Feedback: For precise speed and position control (Hall encoder available)
Technical Overview:
The JGB37-3626 represents a premium 24V brushless DC gear motor combining high-torque planetary gearing with advanced BLDC technology. Designed for precision motion control, this 37mm diameter unit delivers exceptional performance in compact automation applications requiring reliable, maintenance-free operation.
Performance Highlights:
Coreless BLDC Motor Technology
100,000+ hour bearing life
<1% torque ripple
92% peak efficiency
Precision Planetary Gearbox
3-stage helical gear design
<0.5° backlash
85-92% transmission efficiency
Integrated System Design
Built-in thermal protection
IP54 standard (IP65 optional)
EMI/RFI suppressed
Technical Specifications:
| Parameter | Specification |
|---|---|
| Frame Size | 37mm diameter |
| Voltage | 24VDC (±10%) |
| Rated Power | 60W (continuous) |
| Speed Range | 50-600 RPM (customizable) |
| Rated Torque | 2.5Nm (peak 5.0Nm) |
| Gear Ratio | 26:1 (standard), 5-500:1 available |
| Efficiency | 88% typical (motor+gearbox) |
| Rotational Accuracy | ±0.1° (with optional encoder) |
| Ambient Temp Range | -20°C to +60°C |
| Noise Level | <50dB at 1m |
Advanced Features:
Smart Control Interface
PWM speed control (5-100% range)
Analog/digital torque limiting
RS485/CANopen options
Customization Options
Multiple shaft configurations (D-cut, keyway, hollow)
Optical/magnetic encoder integration
Electromagnetic brake versions
Special winding variants (high-torque/speed)
Application-Specific Advantages:
Industrial Automation:
Positioning accuracy: ±0.05° repeatability
300% overload capacity (intermittent)
Vibration-resistant construction
Medical Equipment:
Lubricant-free operation (cleanroom compatible)
Low electromagnetic interference
Smooth motion profile
Robotics:
High torque-to-inertia ratio
Dynamic braking capability
Compact flange mounting
Quality Assurance:
100% performance testing
48-hour burn-in available
RoHS/REACH compliant
CE/UL certification options
Engineering Support Services:
Application analysis
System integration consulting
Custom performance profiling
Lifetime technical support
