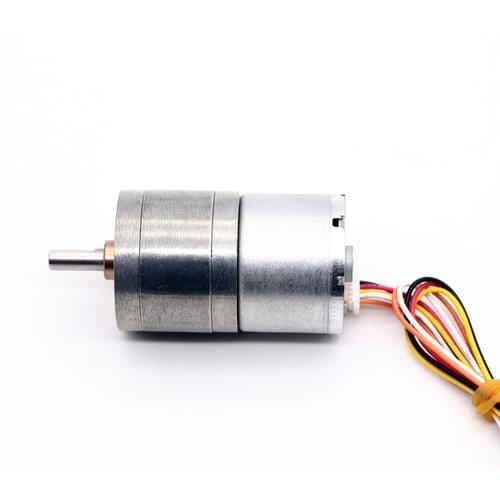

low rpm dc brushless motor 25mm 12v JGA25-2418 25mm brushless reduction motor
$9.42
Specifications:
Rated Voltage: DC 24V
Reduction Ratio:1:4.4~500
D Shaped Output Shaft Size: 4mm
Motor size:25mm
Net weight: 96g
Application:
Electronic door lock, intelligent switch, steam hair straightener (water jet straight hair outlet), label stripper, intelligent wear, intelligent machine 3D printing equipment products, curling device, safe, electric screwdriver, display frame, etc.
Rated Voltage: DC 24V
Reduction Ratio:1:4.4~500
D Shaped Output Shaft Size: 4mm
Motor size:25mm
Net weight: 96g
Application:
Electronic door lock, intelligent switch, steam hair straightener (water jet straight hair outlet), label stripper, intelligent wear, intelligent machine 3D printing equipment products, curling device, safe, electric screwdriver, display frame, etc.
Select
Quantity
Add to cart
More Details
low rpm dc brushless motor 25mm 12v JGA25-2418 25mm brushless reduction motor
- You can choose the voltage: DC 24V.
- Optional no-load speed at 12V: 17.5-1977RPM
- Optional no-load speed at 24V: 17.5-1977RPM
Datasheet:
| Model: JGA25-2418 | No load | On Load | Stall | Size(L) | Weight | |||||||
| Rated Voltage | Speed | Current | Speed | Current | Torque | Power | Torque | Current | ||||
| Workable Voltage | Reduction Ratio | V | rpm | ma | rpm | ma | Kg.cm | W | Kg.cm | A | mm | g |
| 12-24V | 4.4 | 24 | 1977 | 50 | 1500 | 168 | 0.15 | 2.2 | 0.6 | 0.8 | 18 | 100 |
| 12-24V | 9.6 | 24 | 900 | 50 | 682 | 168 | 0.3 | 2.2 | 1.4 | 0.8 | 18 | 105 |
| 12-24V | 21.3 | 24 | 408 | 50 | 308 | 168 | 0.7 | 2.2 | 3 | 0.8 | 19 | 110 |
| 12-24V | 35 | 24 | 245 | 50 | 185 | 168 | 1.17 | 2.2 | 5 | 0.8 | 20 | 115 |
| 12-24V | 47 | 24 | 186 | 50 | 140 | 168 | 1.5 | 2.2 | 6.7 | 0.8 | 20 | 115 |
| 12-24V | 78 | 24 | 111 | 50 | 85 | 168 | 2.8 | 2.2 | 11 | 0.8 | 22 | 120 |
| 12-24V | 103 | 24 | 85 | 50 | 64 | 168 | 3.4 | 2.2 | 15 | 0.8 | 22 | 120 |
| 12-24V | 171 | 24 | 50 | 50 | 38 | 168 | 5.6 | 2.2 | 24 | 0.8 | 24 | 125 |
| 12-24V | 226 | 24 | 38 | 50 | 29 | 168 | 7.5 | 2.2 | 24 | 0.8 | 24 | 125 |
| 12-24V | 377 | 24 | 23 | 50 | 17 | 168 | 12.5 | 2.2 | 24 | 0.8 | 26 | 130 |
| 12-24V | 500 | 24 | 17.5 | 50 | 13 | 168 | 16.5 | 2.2 | 24 | 0.8 | 26 | 130 |
| 12-24V | 4.4 | 12 | 990 | 35 | 740 | 76 | 0.03 | 0.6 | 0.2 | 0.45 | 18 | 100 |
| 12-24V | 9.6 | 12 | 453 | 35 | 340 | 76 | 0.07 | 0.6 | 0.46 | 0.45 | 18 | 105 |
| 12-24V | 21.3 | 12 | 204 | 35 | 150 | 76 | 0.16 | 0.6 | 1 | 0.45 | 19 | 110 |
| 12-24V | 35 | 12 | 122 | 35 | 90 | 76 | 0.28 | 0.6 | 1.7 | 0.45 | 20 | 115 |
| 12-24V | 47 | 12 | 93 | 35 | 70 | 76 | 0.37 | 0.6 | 2.26 | 0.45 | 20 | 115 |
| 12-24V | 78 | 12 | 55 | 35 | 40 | 76 | 0.6 | 0.6 | 3.7 | 0.45 | 22 | 120 |
| 12-24V | 103 | 12 | 42 | 35 | 30 | 76 | 0.8 | 0.6 | 5 | 0.45 | 22 | 120 |
| 12-24V | 171 | 12 | 25 | 35 | 19 | 76 | 1.3 | 0.6 | 8.2 | 0.45 | 24 | 125 |
| 12-24V | 226 | 12 | 19 | 35 | 14 | 76 | 1.8 | 0.6 | 11 | 0.45 | 24 | 125 |
| 12-24V | 377 | 12 | 11 | 35 | 8 | 76 | 3 | 0.6 | 18 | 0.45 | 26 | 130 |
| 12-24V | 500 | 12 | 8.5 | 35 | 6 | 76 | 4 | 0.6 | 24 | 0.45 | 26 | 130 |
